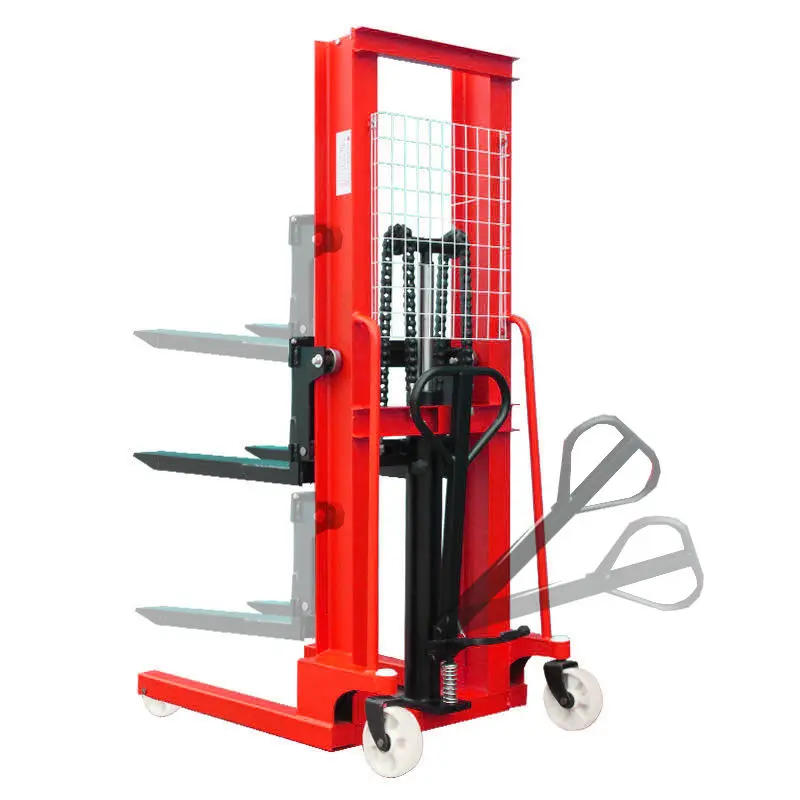

Hydraulic Hand Stacker
Engineered for durability and performance, our Hydraulic Hand Stackers offer a reliable solution for lifting, stacking, and transporting heavy loads with ease. Designed for industrial efficiency, each unit features robust construction, smooth hydraulic operation, and ergonomic controls—ensuring safe and precise material handling in warehouses, factories, and workshops.
| Specification | Details |
|---|---|
| Lifting Capacity | 1000 kg / 1500 kg / 2000 kg |
| Lifting Height | 1600 mm / 2500 mm / 3000 mm |
| Fork Length | 900 mm to 1400 mm |
Fork Width (Adjustable) | 300 mm to 850 mm |
Lowered Fork Height | 85 mm to 100 mm |
Overall Width | Approx. 750 mm to 850 mm |
Overall Height | Varies by lifting height |
Wheel Type | Nylon / PU / Rubber |
Front Wheel Size | 80 mm x 50 mm |
Rear Wheel Size | 180 mm x 50 mm |
Hydraulic Pump | Heavy-duty, leak-proof design |
Operation Type | Manual (Hand & Foot Lever) |
Finish | Powder-coated / Painted |
| Safety Features | Overload protection, brake system |
